XYSSW.DB Varilight White Dual Voltage 240V/115V IP41 Shaver Socket Lily Duck Egg Blue with White Socket

#XYSSW.DB
GTIN: 5021575215922

£24.84 £20.70

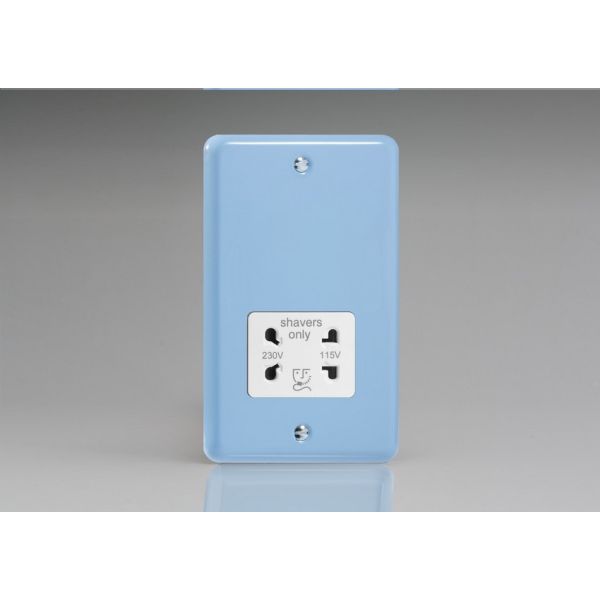

XYSSW.DB Varilight Dual Voltage Shaver Socket on a vertical Double Plate, Lily Duck Egg Blue Curved Edge Plate with White Socket

✔ Suitable for use in bathrooms, toilets and shower rooms (IP41)
✔ 240V accepts British and Continetal round pin and Australia flat-pin
✔ 115V accepts Continental two-pin and America NEMA
✔ Curved edge faceplate
Availability: In stock
SKU
XYSSW.DB
Varilight Dual Voltage Shaver Socket 240/115 Volts, on a vertical Double Plate, suitable for use in bathrooms, toilets and shower rooms (IP41).

..................................................
VARILIGHT Sockets have an industry-wide reputation for exceptional performance, long life and innovation at attractive prices.
..................................................
The Varilight Socket, like all our products, is designed to meet the latest European Safety Legislation.
..................................................
It is important to select the correct Sockets for your application, so please read the following information carefully, if need be look at PDF manuals, and if you are still unsure, then contact us.
..................................................

Appearance, Function and Applications

The Shaver Socket has a IP41 rating so is for use in bathrooms, toilets and any other room, although there should be no direct contact with water. One side of the Shaver Socket is 240V and accepts British and Continetal round pin and Australia flat-pin, the other side of the shaver is 115V and accepts Continental two-pin and America NEMA.
..................................................

Cleaning

This product can be easily cleaned with a soft dry micro-fibre cloth. Never apply masking tape or other similar tape to the product. Avoid the use of any cleaning chemicals and always use a Gasket on freshly plastered, painted or damp walls as the plates may tarnish. (Plaster can take up to 6 months to dry out). A Gasket can be made from the packaging the product comes in, or a plastic bag can be cut to stop the plate touching the plaster. Unfortunately, if these Instructions are not followed, and the plate is damaged, it will void the product warranty.
..................................................

Product Instructions & Manuals


- Wiring Accessories PDF
More Information
Plate Finish Duck Egg Blue
Plate Range Finish Lily Duck Egg Blue
Socket Type Round Pin, Shaver
Sockets 1 Gang Socket
Socket Insert Colour White
Write Your Own Review
You're reviewing:XYSSW.DB Varilight White Dual Voltage 240V/115V IP41 Shaver Socket Lily Duck Egg Blue with White Socket

Product Features


✔ Suitable for use in bathrooms, toilets and shower rooms (IP41)
✔ 240V accepts British and Continetal round pin and Australia flat-pin
✔ 115V accepts Continental two-pin and America NEMA
✔ Curved edge faceplate
..................................................

Range: Lily

Finish: Duck Egg Blue

Product Category: Shaver Socket

Insert/Knob Colour: White Insert

Dimensions: 86x148x44mm

Faceplate Depth: 7mm

Product Weight: 400g

Fixing Centres: 120.6mm

Recommended Back Box Depth: 47mm

Operating Voltage: 220/250V AC

Maximum Load Rating: 20VA

Maximum Current Rating: 80mA

Terminal (Live) Diameter: 5.4mm; Capacity: 4 x 2.5mm²

Terminal (Neutral) Diameter: 5.4mm; Capacity: 4 x 2.5mm²

Terminal (Earth) Diameter: 5mm; Capacity: 4 x 2.5mm²


..................................................

Intended Applications: Indoor Use Only. Domestic power supply.

Safety Advice: Product Must Be Earthed.

Applicable Safety Standard: BS 5733 & BS 1363-2
