XY45S.PR Varilight 45 Amp Double Pole Cooker Switch Lily Pillar Box Red
#XY45S.PR
GTIN: 5021575245394
£12.90
£10.75

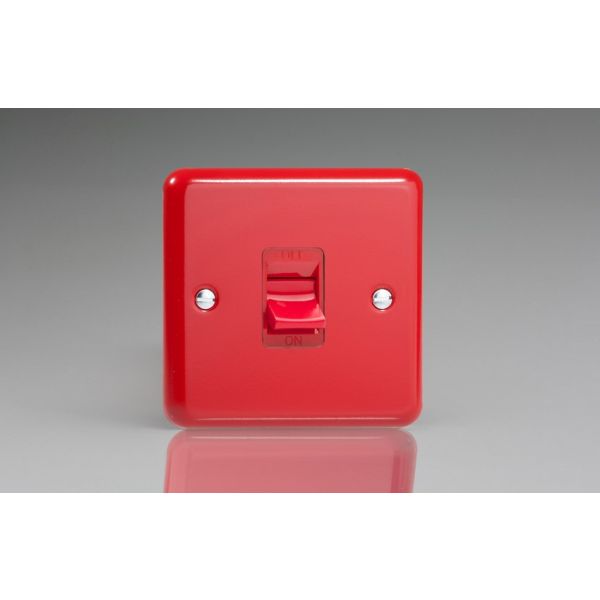

XY45S.PR Varilight Single 45 Amp Cooker Switch on a Single Plate, Lily Pillar Box Red Curved Edge Plate and Red Switch
✔ Double pole switching for safer operation
✔ Single sized plate
✔ Dedicated cooker and high amp equipment switch
✔ Curved edge faceplate
✔ Double pole switching for safer operation
✔ Single sized plate
✔ Dedicated cooker and high amp equipment switch
✔ Curved edge faceplate
Availability:
In stock
SKU
XY45S.PR
Varilight 1 Gang, 1 way 45 Amp Cooker Panel Double Pole Switch, on a Single Plate, for all applications that require up to 45 Amps of switching.
..................................................
VARILIGHT Switches have an industry-wide reputation for exceptional performance, long life and innovation at attractive prices.
..................................................
The Varilight product, like all our products, is designed to meet the latest European Safety Legislation.
..................................................
It is important to select the correct product for your application, so please read the following information carefully, if need be look at PDF manuals, and if you are still unsure, then contact us.
..................................................
Appearance, Function and Applications
The rocker switch is rectangular and protrudes with a central fulcrum, push the 45 amp rocker switch downwards to turn on, and push up the 45 amp rocker switch to turn off, an audible click will occur when turning on/off the switch. The switch is red in colour.
..................................................
Our 45 Amp rocker switches are suitable for controlling applications that require up to 45 Amps of switching, e.g. cooker hobs, cookers and water heaters.
..................................................
Limitations
This switch is not waterproof. If this product is needed for external use please buy the following items IP66 Wall Box and if needed, a Spacer.
..................................................
Cleaning
This product can be easily cleaned with a soft dry micro-fibre cloth. Never apply masking tape or other similar tape to the product. Avoid the use of any cleaning chemicals and always use a Gasket on freshly plastered, painted or damp walls as the plates may tarnish. (Plaster can take up to 6 months to dry out). A Gasket can be made from the packaging the product comes in, or a plastic bag can be cut to stop the plate touching the plaster. Unfortunately, if these Instructions are not followed, and the plate is damaged, it will void the product warranty.
..................................................
Product Instructions & Manuals
- Wiring Accessories PDF
..................................................
VARILIGHT Switches have an industry-wide reputation for exceptional performance, long life and innovation at attractive prices.
..................................................
The Varilight product, like all our products, is designed to meet the latest European Safety Legislation.
..................................................
It is important to select the correct product for your application, so please read the following information carefully, if need be look at PDF manuals, and if you are still unsure, then contact us.
..................................................
Appearance, Function and Applications
The rocker switch is rectangular and protrudes with a central fulcrum, push the 45 amp rocker switch downwards to turn on, and push up the 45 amp rocker switch to turn off, an audible click will occur when turning on/off the switch. The switch is red in colour.
..................................................
Our 45 Amp rocker switches are suitable for controlling applications that require up to 45 Amps of switching, e.g. cooker hobs, cookers and water heaters.
..................................................
Limitations
This switch is not waterproof. If this product is needed for external use please buy the following items IP66 Wall Box and if needed, a Spacer.
..................................................
Cleaning
This product can be easily cleaned with a soft dry micro-fibre cloth. Never apply masking tape or other similar tape to the product. Avoid the use of any cleaning chemicals and always use a Gasket on freshly plastered, painted or damp walls as the plates may tarnish. (Plaster can take up to 6 months to dry out). A Gasket can be made from the packaging the product comes in, or a plastic bag can be cut to stop the plate touching the plaster. Unfortunately, if these Instructions are not followed, and the plate is damaged, it will void the product warranty.
..................................................
Product Instructions & Manuals
- Wiring Accessories PDF
| Product Filters | 1 Gang |
|---|---|
| Plate Finish | Pillar Box Red |
| Plate Range Finish | Lily Pillar Box Red |
| Switch Type | 45 Amp |
| Switch Gangs | 1 Gang Switch |
Write Your Own Review
Product Features
✔ Double pole switching for safer operation
✔ Single sized plate
✔ Dedicated cooker and high amp equipment switch
✔ Curved edge faceplate
..................................................
Range: Lily
Finish: Pillar Box Red
Product Category: Cooker Switch
Insert/Knob Colour: Red Insert
Dimensions: 86x86x35mm
Faceplate Depth: 7mm
Product Weight: 200g
Fixing Centres: 60.3mm
Recommended Back Box Depth: 25mm
Operating Voltage: 220/250V AC
Maximum Load Rating: Cooker Switch; 45A | Socket; 13A
Maximum Current Rating: 45A
Terminal (Live) Diameter: 6.4mm; Capacity: 2 x 10mm²
Terminal (Neutral) Diameter: 6.4mm; Capacity: 2 x 10mm²
Terminal (Earth) Diameter: 5.4mm; Capacity: 2 x 10mm²
..................................................
Intended Applications: Indoor Use Only. Domestic power supply.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS 4177
