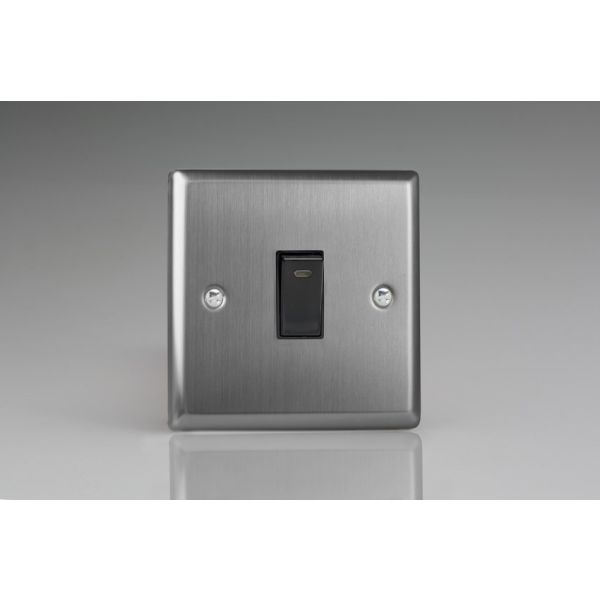

XT20NB Varilight 1 Gang 20 Amp Double Pole Switch with Neon Classic Brushed Steel with Black Switch
#XT20NB
GTIN: 5021575032109
£6.96
£5.80
XT20NB Varilight Single 1 Way 20 Amp Rocker Switch with Red Neon Indicator light on a Single Plate, Classic Brushed Steel Bevelled Edge Plate, Black Switch
✔ Double pole switching
✔ Fully integrated Neon indicator light
✔ Bevelled edge faceplate
✔ Double pole switching
✔ Fully integrated Neon indicator light
✔ Bevelled edge faceplate
Availability:
In stock
SKU
XT20NB
Varilight 1 Gang, 1 way 20 Amp Double Pole Switch with a neon indicator light, on a Single Plate, for all applications that require up to 20 Amps of switching.
..................................................
VARILIGHT Switches have an industry-wide reputation for exceptional performance, long life and innovation at attractive prices.
..................................................
The Varilight switch, like all our products, is designed to meet the latest European Safety Legislation.
..................................................
It is important to select the correct switch for your application, so please read the following information carefully, if need be look at PDF manuals, and if you are still unsure, then contact us.
..................................................
Appearance, Function and Applications
The rocker switch is rectangular with a central fulcrum, press the bottom of the rocker switch to turn on, and the top of the rocker switch to turn off, an audible click will occur when turning on/off the switch. The neon indicator light illuminates when switch is on.
..................................................
Our 20 Amp rocker switches are suitable for controlling applications that require up to 20 Amps of switching, e.g. towel rails, cooker hoods, cooker hobs and water heaters.
..................................................
Limitations
This switch is not waterproof. If this product is needed for external use please buy the following items IP66 Wall Box and if needed, a Spacer.
..................................................
Cleaning
This product can be easily cleaned with a soft dry micro-fibre cloth. Never apply masking tape or other similar tape to the product. Avoid the use of any cleaning chemicals and always use a Gasket on freshly plastered, painted or damp walls as the plates may tarnish. (Plaster can take up to 6 months to dry out). A Gasket can be made from the packaging the product comes in, or a plastic bag can be cut to stop the plate touching the plaster. Unfortunately, if these Instructions are not followed, and the plate is damaged, it will void the product warranty.
..................................................
Product Instructions & Manuals
- Wiring Accessories PDF
..................................................
VARILIGHT Switches have an industry-wide reputation for exceptional performance, long life and innovation at attractive prices.
..................................................
The Varilight switch, like all our products, is designed to meet the latest European Safety Legislation.
..................................................
It is important to select the correct switch for your application, so please read the following information carefully, if need be look at PDF manuals, and if you are still unsure, then contact us.
..................................................
Appearance, Function and Applications
The rocker switch is rectangular with a central fulcrum, press the bottom of the rocker switch to turn on, and the top of the rocker switch to turn off, an audible click will occur when turning on/off the switch. The neon indicator light illuminates when switch is on.
..................................................
Our 20 Amp rocker switches are suitable for controlling applications that require up to 20 Amps of switching, e.g. towel rails, cooker hoods, cooker hobs and water heaters.
..................................................
Limitations
This switch is not waterproof. If this product is needed for external use please buy the following items IP66 Wall Box and if needed, a Spacer.
..................................................
Cleaning
This product can be easily cleaned with a soft dry micro-fibre cloth. Never apply masking tape or other similar tape to the product. Avoid the use of any cleaning chemicals and always use a Gasket on freshly plastered, painted or damp walls as the plates may tarnish. (Plaster can take up to 6 months to dry out). A Gasket can be made from the packaging the product comes in, or a plastic bag can be cut to stop the plate touching the plaster. Unfortunately, if these Instructions are not followed, and the plate is damaged, it will void the product warranty.
..................................................
Product Instructions & Manuals
- Wiring Accessories PDF
| Product Filters | 1 Gang |
|---|---|
| Plate Finish | Brushed Steel |
| Plate Range Finish | Classic Brushed Steel |
| Switch Type | 20 Amp - Heavy Duty |
| Switch Gangs | 1 Gang Switch |
| Switch Color | Black |
Write Your Own Review
Product Features
✔ Double pole switching
✔ Fully integrated Neon indicator light
✔ Bevelled edge faceplate
..................................................
Range: Classic
Finish: Brushed Steel
Product Category: 20A Rocker Switch
Insert/Knob Colour: Black Rocker
Dimensions: 91x91x30mm
Faceplate Depth: 8mm
Product Weight: 150g
Fixing Centres: 60.3mm
Recommended Back Box Depth: 16mm
Operating Voltage: 220/250V AC
Maximum Load Rating: 20A
Maximum Current Rating: 20A
Terminal (Live) Diameter: 4.5mm; Capacity: 4 x 2.5mm²
Terminal (Neutral) Diameter: 4.5mm; Capacity: 4 x 2.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 4 x 2.5mm²
..................................................
Intended Applications: Indoor Use Only. Domestic power supply.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS EN 60669-1
