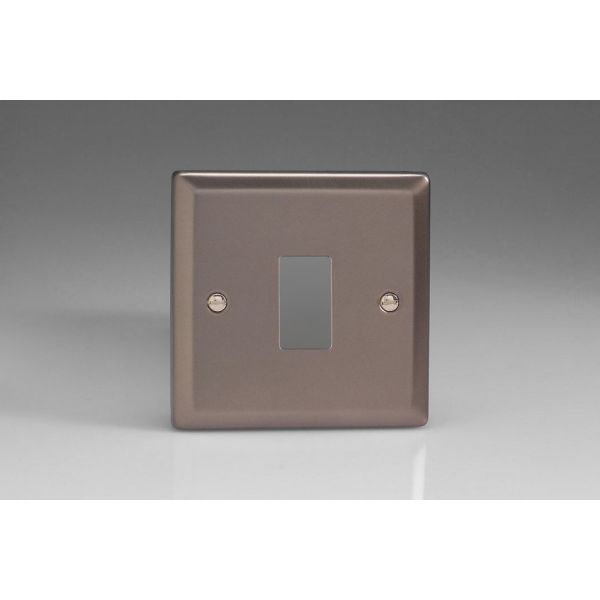

XRPGY1 Varilight 1 Gang Power Grid Faceplate Including Power Grid Frame Classic Pewter Effect Finish

Varilight 1 Gang Power Grid plate, including 1x1 Gang Power Grid Frame (also known as a nest or yolk). This plate enables you to combine switches, dimmers and other accessories on one plate. It is a 3 part assembly: plate, frame & modules.

..................................................
VARILIGHT products have an industry-wide reputation for exceptional performance, long life and innovation at attractive prices.
..................................................
The Varilight Power Grid, like all our products, is designed to meet the latest European Safety Legislation.
..................................................
It is important to select the correct product for your application, so please read the following information carefully, if need be look at PDF manuals, and if you are still unsure, then contact us.
..................................................

Appearance, Function and Applications

VARILIGHT Power Grid Plates enables you to combine switches, dimmers and other accessories on one plate. It is a 3 part assembly: plate, frame & modules
..................................................
Power Grid is a major new addition to the VARILIGHT Dimension range of electrical accessories.
..................................................
There are 200 Power Grid modules including new Engraved Modules, and both Screwless and Screwed Grid faceplates across the nine finishes enabling you to create countless combinations to produce tailor-made wiring accessories for specific projects.
..................................................
There are two types of plates: Dimension Screwed Power Grid plates employs mini fixing screws but will complement the existing range of Dimension Screwless sockets and Data Grid accessories to create one hugely expanded range assortment; Dimension Screwless Power Grid plates are in keeping with the rest of the screwless range, simply add the modules to the frame, and screw to wall box, then clip the cover plate on to frames.
..................................................
Please note: The data Grid inserts are not compatible with the Power Grid plates, Data Grid plates will have to be bought seperately.
..................................................
Power Grid switch modules are available as 10AX 2 way and 20AX with 3 way, 2 way and 1 way configurations, single and double pole, standard switches, including some incorporating neons are complemented by intermediate switches, key switches, 2 way and on/off retractive switches, 13A fuse holders, 16A flex outlets and green, amber and red neon indicator modules, blanking modules and both 250W and 400W multi-purpose 2 way dimmer modules, as well as V-Pro, V-Com and Multi Point modules for dimming LEDs.
..................................................
There are four different grid frames, for these products, which hold the inserts in place in the plates.
..................................................
These Grid Frames are included when you buy each of the plates, if extra Frames are required, you can buy from our Accessories category.
..................................................
Power Grid plates are available as 1, 2, 3, 4, 6, 8, 9 and 12 gang faceplates.
..................................................
As some of the dimmer modules sit deeply in the plate a 47mm wall box may be required.
..................................................

Cleaning

This product can be easily cleaned with a soft dry micro-fibre cloth. Never apply masking tape or other similar tape to the product. Avoid the use of any cleaning chemicals and always use a Gasket on freshly plastered, painted or damp walls as the plates may tarnish. (Plaster can take up to 6 months to dry out). A Gasket can be made from the packaging the product comes in, or a plastic bag can be cut to stop the plate touching the plaster. Unfortunately, if these Instructions are not followed, and the plate is damaged, it will void the product warranty.
..................................................

Product Instructions & Manuals


- Power Grid PDF
- Wiring Accessories PDF
- Screwless Fitting PDF
