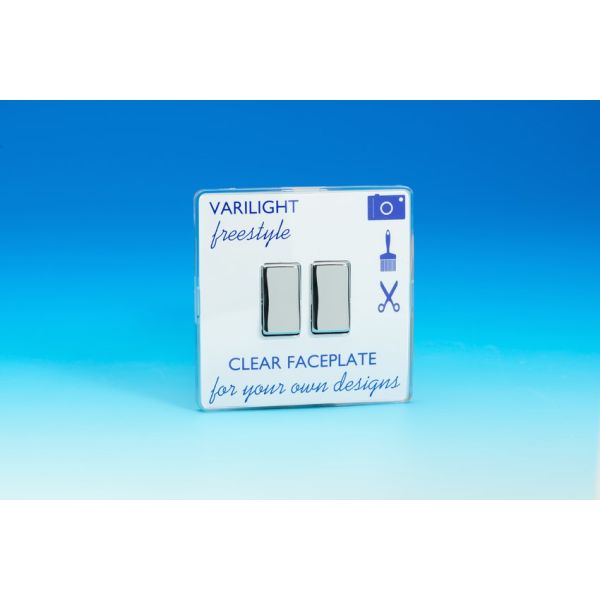

XIF2C Varilight 2 Gang, 1 or 2 Way 10 Amp Switch Screwless Freestyle With Polished Chrome Switches

Varilight 2 Gang, for either 1 or 2 way circuits, 10 Amp rocker switch, on a Single Plate, for all lighting types.

..................................................
VARILIGHT Switches have an industry-wide reputation for exceptional performance, long life and innovation at attractive prices.
..................................................
The Varilight switch, like all our products, is designed to meet the latest European Safety Legislation.
..................................................
It is important to select the correct switch for your application, so please read the following information carefully, if need be look at PDF manuals, and if you are still unsure, then contact us.
..................................................

Appearance, Function and Applications

The rocker switch is rectangular with a central fulcrum, press the bottom of the rocker switch to turn on, and the top of the rocker switch to turn off, an audible click will occur when turning on/off the switch.
..................................................
Our standard rocker switches are suitable for controlling mains and low voltage lighting, halogen, incandescent GLS, LEDs and any other lighting that does not require dimming.
..................................................
They are also suitable for either 1 way, or 2 way circuits, i.e. where the same lights are controlled by 2 seperate switches. If the lighting circuit is controlled by three switches, in seperate locations then one of the switches in the circuit must be an Intermediate Switch with four terminals enabling you to link all three switches together.
..................................................

The Freestyle Series is a mini range.

The Freestyle Range allows the creation of individual designs. To create the design, simply remove the clear front plate carefully by gently pulling two of the raised clips on adjacent sides of the clear frame around the product, to allow the clear front plate to be lifted out. There are now a few options: Lift out the printed card, turn it over, this can be drawn on. Alternatively, use the printed card as a template to create desired design, or cut photos, wallpaper or print anything from the internet (Be Creative!)

It may be easier to to draw around the clear faceplate on the back of the selected design, and then cut with scissors or a craft knife on a suitable surface.

Lastly put the design in place, on the product, and clip the the clear front plate back into the clear frame to secure.
..................................................

Limitations

This switch is not waterproof. If this product is needed for external use please buy the following items IP66 Wall Box and if needed, a Spacer.
..................................................
For heavy duty applications such as controlling water heaters or cookers choose from our Heavy Duty Switches, 20 Amp and 45 Amp.
..................................................
If you would prefer a dimmer instead, then choose one of the following dimmers: if dimming LEDs choose either the V-Pro, Multi-Point Remote, Multi-Point Touch, or V-Com Dimmer Series. If dimming mains and Low Voltage then choose V-Plus Dimmer Series.
..................................................
Alternatively, if you need a dimmer to use in conjunction with this product, then choose one of the following dimmers: if dimming LEDs choose either the V-Pro, or V-Com Dimmer Series. If dimming mains and Low Voltage then choose V-Plus Dimmer Series, and if only dimming incandescent lighting, then choose V-Dim.
..................................................

Cleaning

This product can be easily cleaned with a soft dry micro-fibre cloth. Never apply masking tape or other similar tape to the product. Avoid the use of any cleaning chemicals and always use a Gasket on freshly plastered, painted or damp walls as the plates may tarnish. (Plaster can take up to 6 months to dry out). A Gasket can be made from the packaging the product comes in, or a plastic bag can be cut to stop the plate touching the plaster. Unfortunately, if these Instructions are not followed, and the plate is damaged, it will void the product warranty
..................................................

Product Instructions & Manuals


- Wiring Accessories PDF
- Screwless Fitting PDF
