XFVFOD Varilight Flex Outlet 16 Amp with Cable Clamp Ultra Flat Polished Brass Coated With Polished Brass Flex Outlet

#XFVFOD
GTIN: 5021575780802

£7.38 £6.15

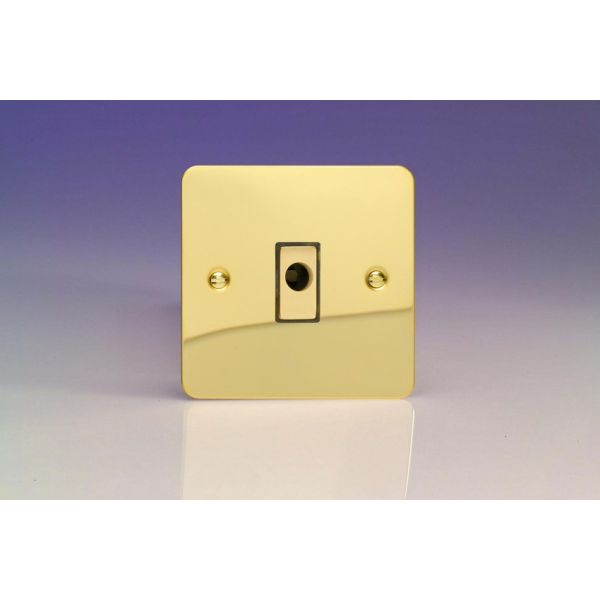

XFVFOD Varilight Single 16 Amp Flex Outlet with Cable ClAmp and Terminals on a Single Plate, Ultra Flat Polished Brass Coated 1mm-Thick Plate, Polished Brass Flex Outlet

✔ Can be used in a number of different environments for many applications
✔ Cable clamp
✔ Contemporary, ultra-slim faceplate
Availability: In stock
SKU
XFVFOD
Varilight 1 Gang, 16 Amp, Flex Outlet Plate with Cable Clamp, on a Single Plate, for use as a neat way for hiding cables, sending cables through walls, and to connect to appliances.

..................................................
VARILIGHT products have an industry-wide reputation for exceptional performance, long life and innovation at attractive prices.
..................................................
The Varilight product, like all our products, is designed to meet the latest European Safety Legislation.
..................................................
It is important to select the correct product for your application, so please read the following information carefully, if need be look at PDF manuals, and if you are still unsure, then contact us.
..................................................

Appearance, Function and Applications

The Flex Outlet Plates can be used in a number of different environments, and applications, for many different types of appliances e.g. an electric towel rail. Make sure there is no contact with water, wet areas should be avoided, and the Flex Outlet to be put outside of these rooms.
..................................................

Cleaning

This product can be easily cleaned with a soft dry micro-fibre cloth. Never apply masking tape or other similar tape to the product. Avoid the use of any cleaning chemicals and always use a Gasket on freshly plastered, painted or damp walls as the plates may tarnish. (Plaster can take up to 6 months to dry out). A Gasket can be made from the packaging the product comes in, or a plastic bag can be cut to stop the plate touching the plaster. Unfortunately, if these Instructions are not followed, and the plate is damaged, it will void the product warranty.
..................................................

Product Instructions & Manuals


- Wiring Accessories PDF
More Information
Plate Finish Polished Brass
Plate Range Finish Ultra Flat Polished Brass
Socket Type Flex Outlet
Socket Insert Colour Brass
Write Your Own Review
You're reviewing:XFVFOD Varilight Flex Outlet 16 Amp with Cable Clamp Ultra Flat Polished Brass Coated With Polished Brass Flex Outlet

Product Features


✔ Can be used in a number of different environments for many applications
✔ Cable clamp
✔ Contemporary, ultra-slim faceplate
..................................................

Range: Ultra Flat

Finish: Polished Brass Coated

Product Category: Flex Outlet

Insert/Knob Colour: Polished Brass Insert

Dimensions: 89x89x34mm

Faceplate Depth: 1mm

Product Weight: 130g

Fixing Centres: 60.3mm

Recommended Back Box Depth: 25mm

Operating Voltage: N/A

Maximum Load Rating: 16A

Maximum Current Rating: 16A

Terminal (Live) Diameter: 4.5mm; Capacity: 4 x 2.5mm²

Terminal (Neutral) Diameter: 4.5mm; Capacity: 4 x 2.5mm²

Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²


..................................................

Intended Applications: Indoor Use Only. Domestic power supply.

Safety Advice: Product Must Be Earthed.

Applicable Safety Standard: BS 1363-4
