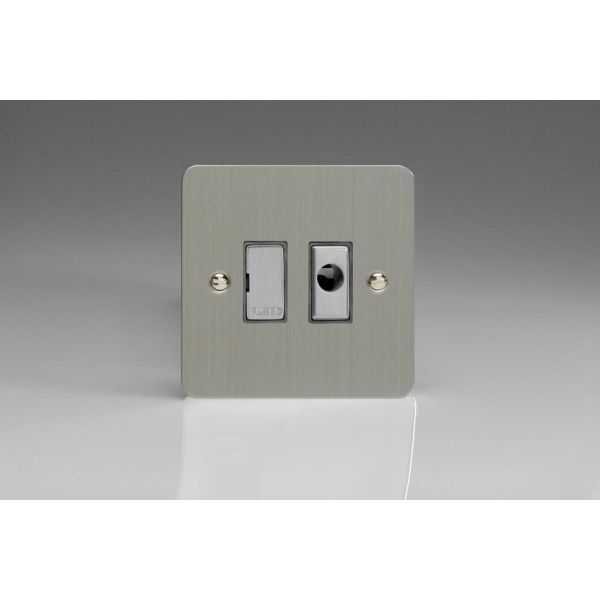

XFS6UFOD Varilight 1 Gang 13 Amp Unswitched Fused Spur with Flex Outlet Ultra Flat Brushed Stainless Steel With Brushed Steel Fuse Cover and Flex Outlet
#XFS6UFOD
GTIN: 5021575711660
£10.86
£9.05
XFS6UFOD Varilight Single 13 Amp Unswitched Fused Spur with Flex Outlet on a Single Plate, Ultra Flat Brushed Stainless Steel 1mm-Thick Plate, Brushed Steel Fuse Cover and Flex Outlet
✔ Holds standard 25.4x6.4mm fuse
✔ Replaceable 13A fuse included
✔ Cable clamp
✔ Contemporary, ultra-slim faceplate
✔ Holds standard 25.4x6.4mm fuse
✔ Replaceable 13A fuse included
✔ Cable clamp
✔ Contemporary, ultra-slim faceplate
Availability:
In stock
SKU
XFS6UFOD
Varilight 1 Gang, 13 Amp Unswitched Fused Spur, with Flex Outlet, on a Single Plate.
..................................................
VARILIGHT Switches have an industry-wide reputation for exceptional performance, long life and innovation at attractive prices.
..................................................
The Varilight fused spur, like all our products, is designed to meet the latest European Safety Legislation.
..................................................
It is important to select the correct fused spur for your application, so please read the following information carefully, if need be look at PDF manuals, and if you are still unsure, then contact us.
..................................................
Appearance, Function and Applications
This version is unswitched, a 13 Amp fuse is included, which can be replaced with 13 Amp fuses with measurements 25.4 x 6.4 mm if it blows. The flex outlet is an aperture in the plate which clamps a cable in place for powering appliances, this saves on bringing the cable out from the wall.
..................................................
Varilight unswitched fused spurs are suitable for controlling any 13 Amp appliance including dishwashers, washing machines and heated towel rails.
..................................................
Limitations
For heavy duty applications such as controlling water heaters or cookers choose from our Heavy Duty Switches, 20 Amp and 45 Amp.
..................................................
Cleaning
This product can be easily cleaned with a soft dry micro-fibre cloth. Never apply masking tape or other similar tape to the product. Avoid the use of any cleaning chemicals and always use a Gasket on freshly plastered, painted or damp walls as the plates may tarnish. (Plaster can take up to 6 months to dry out). A Gasket can be made from the packaging the product comes in, or a plastic bag can be cut to stop the plate touching the plaster. Unfortunately, if these Instructions are not followed, and the plate is damaged, it will void the product warranty.
..................................................
Product Instructions & Manuals
- Wiring Accessories PDF
..................................................
VARILIGHT Switches have an industry-wide reputation for exceptional performance, long life and innovation at attractive prices.
..................................................
The Varilight fused spur, like all our products, is designed to meet the latest European Safety Legislation.
..................................................
It is important to select the correct fused spur for your application, so please read the following information carefully, if need be look at PDF manuals, and if you are still unsure, then contact us.
..................................................
Appearance, Function and Applications
This version is unswitched, a 13 Amp fuse is included, which can be replaced with 13 Amp fuses with measurements 25.4 x 6.4 mm if it blows. The flex outlet is an aperture in the plate which clamps a cable in place for powering appliances, this saves on bringing the cable out from the wall.
..................................................
Varilight unswitched fused spurs are suitable for controlling any 13 Amp appliance including dishwashers, washing machines and heated towel rails.
..................................................
Limitations
For heavy duty applications such as controlling water heaters or cookers choose from our Heavy Duty Switches, 20 Amp and 45 Amp.
..................................................
Cleaning
This product can be easily cleaned with a soft dry micro-fibre cloth. Never apply masking tape or other similar tape to the product. Avoid the use of any cleaning chemicals and always use a Gasket on freshly plastered, painted or damp walls as the plates may tarnish. (Plaster can take up to 6 months to dry out). A Gasket can be made from the packaging the product comes in, or a plastic bag can be cut to stop the plate touching the plaster. Unfortunately, if these Instructions are not followed, and the plate is damaged, it will void the product warranty.
..................................................
Product Instructions & Manuals
- Wiring Accessories PDF
| Product Filters | Fused Spur |
|---|---|
| Plate Range Finish | Ultra Flat Brushed Steel |
| Socket Type | Flex Outlet |
| Socket Insert Colour | Brushed Steel |
| Switch Type | Fused Spur |
| Switch Color | Brushed Steel |
Write Your Own Review
Product Features
✔ Holds standard ²5.4x6.4mm fuse
✔ Replaceable 13A fuse included
✔ Cable clamp
✔ Contemporary, ultra-slim faceplate
..................................................
Range: Ultra Flat
Finish: Brushed Stainless Steel
Product Category: Fused Spur
Insert/Knob Colour: Brushed Steel Inserts
Dimensions: 89x89x34mm
Faceplate Depth: 1mm
Product Weight: 190g
Fixing Centres: 60.3mm
Recommended Back Box Depth: 35mm
Operating Voltage: ²²0/²50V AC
Maximum Load Rating: Refer to Fuse Value
Maximum Current Rating: 13A
Terminal (Live) Diameter: 4.5mm; Capacity: 4 x ².5mm²
Terminal (Neutral) Diameter: 4.5mm; Capacity: 4 x ².5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
..................................................
Intended Applications: Indoor Use Only. Domestic power supply.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS 1363-4
