XDY4VBS.PD Varilight 1 Gang 13 Amp Double Pole Switched Socket Screwless Primed and Ready to Paint With Black Socket and Polished Brass Switch

XDY4VBS.PD Varilight 1 Gang 13 Amp Double Pole Switched Socket Screwless Primed and Ready to Paint With Black Socket and Polished Brass Switch

XDY4VWS.PD Varilight 1 Gang 13 Amp Double Pole Switched Socket Screwless Primed and Ready to Paint With White Socket and Polished Brass Switch

XDY4VWS.PD Varilight 1 Gang 13 Amp Double Pole Switched Socket Screwless Primed and Ready to Paint With White Socket and Polished Brass Switch

XDY4WS.PD Varilight 1 Gang 13 Amp Double Pole Switched Socket Screwless Primed and Ready to Paint With White Socket and Polished Chrome Switch

#XDY4WS.PD
GTIN: 5021575192667

£7.62 £6.35

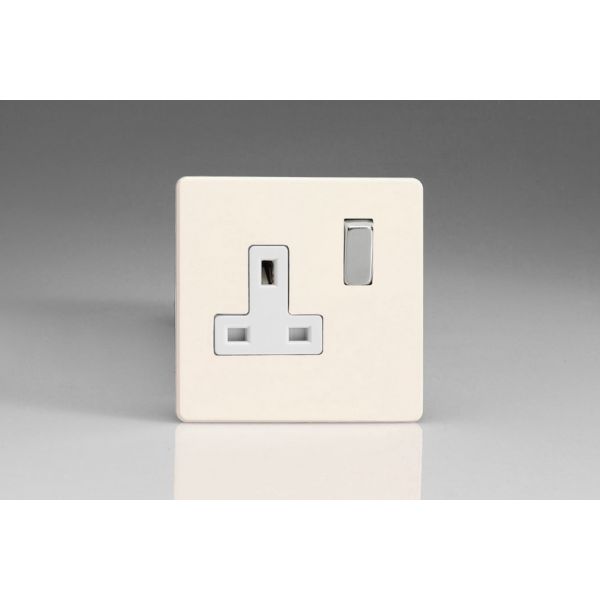

XDY4WS.PD Varilight Single 13 amp Switched Socket on a Single Plate, Dimension Screwless Primed Low Profile Plate (All Ready to Paint), White Socket and Polished Chrome Switch

✔ Double pole switching for safer operation
✔ Sleek, low-profile screwless faceplate
✔ Primed Plate all ready to paint
Availability: In stock
SKU
XDY4WS.PD
Varilight 1 Gang, 13 Amp Double Pole Switched Socket, on a Single Plate.

..................................................
VARILIGHT Sockets have an industry-wide reputation for exceptional performance, long life and innovation at attractive prices.
..................................................
The Varilight Socket, like all our products, is designed to meet the latest European Safety Legislation.
..................................................
It is important to select the correct Sockets for your application, so please read the following information carefully, if need be look at PDF manuals, and if you are still unsure, then contact us.
..................................................

Appearance, Function and Applications

What paint can I use? - You can use any paint, which will give you a variety of finishes.

How many coats will it typically take to finish them well? - Varilight recommend 3 coats for emulsion, which can be applied by brush or roller, and at least 1 coat for spray paint.

Will these conform to British Standards? - All our products conform to the BSEN Standards.

Can I remove the paint once painted - if so how? - You can't remove the paint unless you're confident in sanding it off with sandpaper or similar, but you can over-paint the plate if you decide to change your wall colour.

Do I still get a warranty once painted? - Warranty is for the working parts of the accessories, but not on the finish that has been applied.

What colour do they come unfinished? - They are a slightly creamy off white when they're unfinished.
..................................................
The rocker switch on the Socket is rectangular with a central fulcrum, press the bottom of the rocker switch to turn on, and the top of the rocker switch to turn off, an audible click will occur when turning on/off the switch, the socket accepts British plugs.
..................................................

Limitations

This Socket is not waterproof. If this product is needed for external use please buy the following items IP66 Wall Box and if needed, a Spacer.
..................................................

Cleaning

This product can be easily cleaned with a soft dry micro-fibre cloth. Never apply masking tape or other similar tape to the product. Avoid the use of any cleaning chemicals and always use a Gasket on freshly plastered, painted or damp walls as the plates may tarnish. (Plaster can take up to 6 months to dry out). A Gasket can be made from the packaging the product comes in, or a plastic bag can be cut to stop the plate touching the plaster. Unfortunately, if these Instructions are not followed, and the plate is damaged, it will void the product warranty.
..................................................

Product Instructions & Manuals


- Wiring Accessories PDF
- Screwless Fitting PDF
More Information
Plate Finish Primed
Plate Range Finish Screwless Primed
Socket Type 13 Amp - Mains Socket
Sockets 1 Gang Socket
Socket Insert Colour White, Chrome
Write Your Own Review
You're reviewing:XDY4WS.PD Varilight 1 Gang 13 Amp Double Pole Switched Socket Screwless Primed and Ready to Paint With White Socket and Polished Chrome Switch

Product Features


✔ Double pole switching for safer operation
✔ Sleek, low-profile screwless faceplate
✔ Primed Plate all ready to paint
..................................................

Range: Primed

Finish: Primed Finish, already for painting to your own specs

Product Category: 13A Socket

Insert/Knob Colour: Polished Chrome/White Inserts

Dimensions: 86x86x32mm

Faceplate Depth: 4mm

Product Weight: 160g

Fixing Centres: 60.3mm

Recommended Back Box Depth: 35mm

Operating Voltage: 220/250V AC

Maximum Load Rating: 13A

Maximum Current Rating: 13A

Terminal (Live) Diameter: 4.8mm; Capacity: 4 x 2.5mm²

Terminal (Neutral) Diameter: 4.8mm; Capacity: 4 x 2.5mm²

Terminal (Earth) Diameter: 4.8mm; Capacity: 4 x 2.5mm²


..................................................

Intended Applications: Indoor Use Only. Domestic power supply.

Safety Advice: Product Must Be Earthed.

Applicable Safety Standard: BS 1363-2
