XDNRP5AWS Varilight 1 Gang 5 Amp White Round Pin Socket 0-1150 Watts Screwless Satin Chrome Effect Finish With White Socket
#XDNRP5AWS
GTIN: 5021575471861
£11.10
£9.25
XDNRP5AWS Varilight Single 5 Amp Unswitched Round Pin Socket on a Single Plate, Dimension Screwless Satin Chrome Effect Low Profile Plate with White Socket
✔ For use in lighting circuits up to 1150W in conjunction with wall switches
✔ Sleek, low-profile screwless faceplate
✔ For use in lighting circuits up to 1150W in conjunction with wall switches
✔ Sleek, low-profile screwless faceplate
Availability:
In stock
SKU
XDNRP5AWS

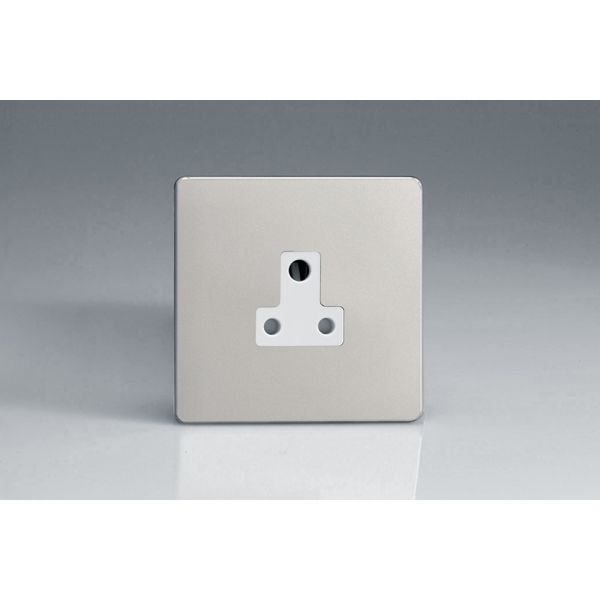

Varilight 1 Gang, 5 Amp Round Pin Socket, on a Single Plate, for use in lighting circuits up to 1150W in conjunction with wall switches.
..................................................
VARILIGHT Sockets have an industry-wide reputation for exceptional performance, long life and innovation at attractive prices.
..................................................
The Varilight Socket, like all our products, is designed to meet the latest European Safety Legislation.
..................................................
It is important to select the correct Sockets for your application, so please read the following information carefully, if need be look at PDF manuals, and if you are still unsure, then contact us.
..................................................
Appearance, Function and Applications
This socket accepts British 5 Amp Round Pin plugs.
..................................................
These sockets are for use only with lighting circuits, where the socket is typically controlled from the main wall switch in the room. This enables sidelights, that are plugged in to the 5 Amp sockets in the room, to be switched on at the same time when entering the room. These sockets accept the 5 amp round pin plugs and can carry a load of up to 1150 watts. We also sell 5 Amp Plug tops 5APLUGB or 5APLUGW.
..................................................
Limitations
This Socket is not waterproof. If this product is needed for external use please buy the following items IP66 Wall Box and if needed, a Spacer.
..................................................
Cleaning
This product can be easily cleaned with a soft dry micro-fibre cloth. Never apply masking tape or other similar tape to the product. Avoid the use of any cleaning chemicals and always use a Gasket on freshly plastered, painted or damp walls as the plates may tarnish. (Plaster can take up to 6 months to dry out). A Gasket can be made from the packaging the product comes in, or a plastic bag can be cut to stop the plate touching the plaster. Unfortunately, if these Instructions are not followed, and the plate is damaged, it will void the product warranty.
..................................................
Product Instructions & Manuals
- Wiring Accessories PDF
- Screwless Fitting PDF
..................................................
VARILIGHT Sockets have an industry-wide reputation for exceptional performance, long life and innovation at attractive prices.
..................................................
The Varilight Socket, like all our products, is designed to meet the latest European Safety Legislation.
..................................................
It is important to select the correct Sockets for your application, so please read the following information carefully, if need be look at PDF manuals, and if you are still unsure, then contact us.
..................................................
Appearance, Function and Applications
This socket accepts British 5 Amp Round Pin plugs.
..................................................
These sockets are for use only with lighting circuits, where the socket is typically controlled from the main wall switch in the room. This enables sidelights, that are plugged in to the 5 Amp sockets in the room, to be switched on at the same time when entering the room. These sockets accept the 5 amp round pin plugs and can carry a load of up to 1150 watts. We also sell 5 Amp Plug tops 5APLUGB or 5APLUGW.
..................................................
Limitations
This Socket is not waterproof. If this product is needed for external use please buy the following items IP66 Wall Box and if needed, a Spacer.
..................................................
Cleaning
This product can be easily cleaned with a soft dry micro-fibre cloth. Never apply masking tape or other similar tape to the product. Avoid the use of any cleaning chemicals and always use a Gasket on freshly plastered, painted or damp walls as the plates may tarnish. (Plaster can take up to 6 months to dry out). A Gasket can be made from the packaging the product comes in, or a plastic bag can be cut to stop the plate touching the plaster. Unfortunately, if these Instructions are not followed, and the plate is damaged, it will void the product warranty.
..................................................
Product Instructions & Manuals
- Wiring Accessories PDF
- Screwless Fitting PDF
| Plate Finish | Satin Chrome |
|---|---|
| Plate Range Finish | Screwless Satin Chrome |
| Socket Type | Round Pin |
| Sockets | 1 Gang Socket |
| Socket Insert Colour | White |
Write Your Own Review
Product Features
✔ For use in lighting circuits up to 1150W in conjunction with wall switches
✔ Sleek, low-profile screwless faceplate
..................................................
Range: Screwless
Finish: Satin Chrome Effect
Product Category: Round Pin Socket
Insert/Knob Colour: White Insert
Dimensions: 86x86x25mm
Faceplate Depth: 4mm
Product Weight: 190g
Fixing Centres: 60.3mm
Recommended Back Box Depth: 35mm
Operating Voltage: 220/250V AC
Maximum Load Rating: 5A
Maximum Current Rating: 5A
Terminal (Live) Diameter: 3.7mm; Capacity: 3 x 1.5mm²
Terminal (Neutral) Diameter: 3.7mm; Capacity: 3 x 1.5mm²
Terminal (Earth) Diameter: 3.7mm; Capacity: 3 x 1.5mm²
..................................................
Intended Applications: Indoor Use Only. Domestic power supply.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS BS 546
