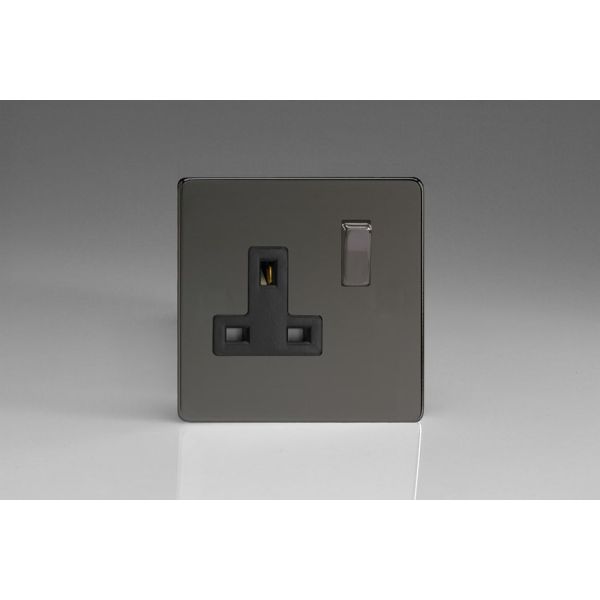

XDI4BS Varilight 1 Gang 13 Amp Double Pole Switched Socket Screwless Iridium Black (Gloss) Effect Finish With Black Socket and Iridium Black Switch
#XDI4BS
GTIN: 5021575440294
£7.62
£6.35
XDI4BS Varilight Single 13 amp Switched Socket on a Single Plate, Dimension Screwless Iridium Black Effect Low Profile Plate, Black Socket and Iridium Black Switch
✔ Double pole switching for safer operation
✔ Sleek, low-profile screwless faceplate
✔ Double pole switching for safer operation
✔ Sleek, low-profile screwless faceplate
Availability:
In stock
SKU
XDI4BS
Varilight 1 Gang, 13 Amp Double Pole Switched Socket, on a Single Plate.
..................................................
VARILIGHT Sockets have an industry-wide reputation for exceptional performance, long life and innovation at attractive prices.
..................................................
The Varilight Socket, like all our products, is designed to meet the latest European Safety Legislation.
..................................................
It is important to select the correct Sockets for your application, so please read the following information carefully, if need be look at PDF manuals, and if you are still unsure, then contact us.
..................................................
Appearance, Function and Applications
The rocker switch on the Socket is rectangular with a central fulcrum, press the bottom of the rocker switch to turn on, and the top of the rocker switch to turn off, an audible click will occur when turning on/off the switch, the socket accepts British plugs.
..................................................
Limitations
This Socket is not waterproof. If this product is needed for external use please buy the following items IP66 Wall Box and if needed, a Spacer.
..................................................
Cleaning
This product can be easily cleaned with a soft dry micro-fibre cloth. Never apply masking tape or other similar tape to the product. Avoid the use of any cleaning chemicals and always use a Gasket on freshly plastered, painted or damp walls as the plates may tarnish. (Plaster can take up to 6 months to dry out). A Gasket can be made from the packaging the product comes in, or a plastic bag can be cut to stop the plate touching the plaster. Unfortunately, if these Instructions are not followed, and the plate is damaged, it will void the product warranty.
..................................................
Product Instructions & Manuals
- Wiring Accessories PDF
- Screwless Fitting PDF
..................................................
VARILIGHT Sockets have an industry-wide reputation for exceptional performance, long life and innovation at attractive prices.
..................................................
The Varilight Socket, like all our products, is designed to meet the latest European Safety Legislation.
..................................................
It is important to select the correct Sockets for your application, so please read the following information carefully, if need be look at PDF manuals, and if you are still unsure, then contact us.
..................................................
Appearance, Function and Applications
The rocker switch on the Socket is rectangular with a central fulcrum, press the bottom of the rocker switch to turn on, and the top of the rocker switch to turn off, an audible click will occur when turning on/off the switch, the socket accepts British plugs.
..................................................
Limitations
This Socket is not waterproof. If this product is needed for external use please buy the following items IP66 Wall Box and if needed, a Spacer.
..................................................
Cleaning
This product can be easily cleaned with a soft dry micro-fibre cloth. Never apply masking tape or other similar tape to the product. Avoid the use of any cleaning chemicals and always use a Gasket on freshly plastered, painted or damp walls as the plates may tarnish. (Plaster can take up to 6 months to dry out). A Gasket can be made from the packaging the product comes in, or a plastic bag can be cut to stop the plate touching the plaster. Unfortunately, if these Instructions are not followed, and the plate is damaged, it will void the product warranty.
..................................................
Product Instructions & Manuals
- Wiring Accessories PDF
- Screwless Fitting PDF
| Plate Finish | Iridium Black |
|---|---|
| Plate Range Finish | Screwless Iridium Black |
| Socket Type | 13 Amp - Mains Socket |
| Sockets | 1 Gang Socket |
| Socket Insert Colour | Black, Iridium Black |
Write Your Own Review
Product Features
✔ Double pole switching for safer operation
✔ Sleek, low-profile screwless faceplate
..................................................
Range: Screwless
Finish: Iridium Black Effect
Product Category: 13A Socket
Insert/Knob Colour: Iridium Black/Black Inserts
Dimensions: 86x86x32mm
Faceplate Depth: 4mm
Product Weight: 160g
Fixing Centres: 60.3mm
Recommended Back Box Depth: 35mm
Operating Voltage: 220/250V AC
Maximum Load Rating: 13A
Maximum Current Rating: 13A
Terminal (Live) Diameter: 4.8mm; Capacity: 4 x 2.5mm²
Terminal (Neutral) Diameter: 4.8mm; Capacity: 4 x 2.5mm²
Terminal (Earth) Diameter: 4.8mm; Capacity: 4 x 2.5mm²
..................................................
Intended Applications: Indoor Use Only. Domestic power supply.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS 1363-2
