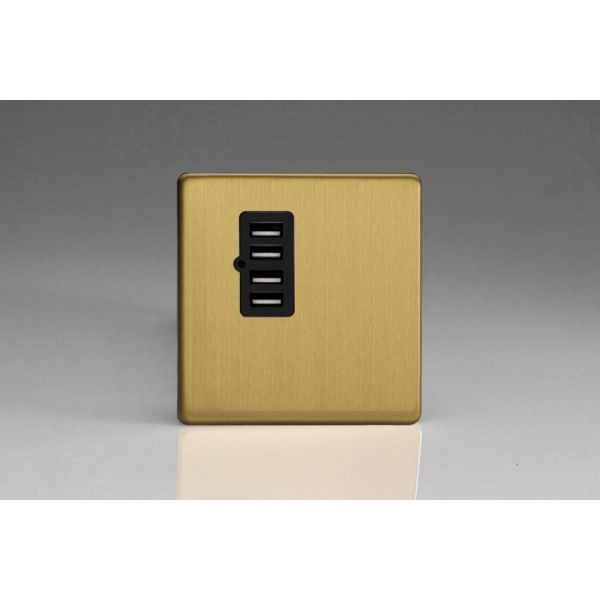

XDBU4BS Varilight 4 Gang 5V DC 4800mA USB Charging Port Screwless Brushed Brass Effect Finish With Black Sockets
#XDBU4BS
GTIN: 5021575051452
£28.32
£23.60
XDBU4BS Varilight 4 Gang 5V DC 4800mA USB Charging Port on a Single Plate, Dimension Screwless Brushed Brass Effect Low Profile Plate, Black Sockets
✔Power more devices with the flexibility of four charging ports sharing 4800mA
✔Smart Port technology makes it ideal for charging multiple devices, including iPads, iPhones, tablets, mobiles and cameras
✔The USB port detects the device to be charged and optimises its output accordingly to achieve the fastest possible charging speed
✔Sleek, low-profile screwless faceplate
✔Fits in a 35mm Deep Wall Box
✔Power more devices with the flexibility of four charging ports sharing 4800mA
✔Smart Port technology makes it ideal for charging multiple devices, including iPads, iPhones, tablets, mobiles and cameras
✔The USB port detects the device to be charged and optimises its output accordingly to achieve the fastest possible charging speed
✔Sleek, low-profile screwless faceplate
✔Fits in a 35mm Deep Wall Box
Availability:
In stock
SKU
XDBU4BS
Varilight 4 Gang 5V DC 4800mA USB Charging Port on a Single Plate, ideal for charging iPad, iPhone, tablets, mobiles and cameras.
..................................................
VARILIGHT Sockets have an industry-wide reputation for exceptional performance, long life and innovation at attractive prices.
..................................................
The Varilight Socket, like all our products, is designed to meet the latest European Safety Legislation.
..................................................
It is important to select the correct Sockets for your application, so please read the following information carefully, if need be look at PDF manuals, and if you are still unsure, then contact us.
..................................................
Appearance, Function and Applications
There are 4 optimised USB sockets sharing 4800mA on the plate.
..................................................
Smart Port technology makes it ideal for charging multiple devices, including iPads, iPhones, tablets, mobiles and cameras. The USB port detects the device to be charged and optimises its output accordingly to achieve the fastest possible charging speed.
..................................................
Limitations
This Socket is not waterproof.
..................................................
Cleaning
This product can be easily cleaned with a soft dry micro-fibre cloth. Never apply masking tape or other similar tape to the product. Avoid the use of any cleaning chemicals and always use a Gasket on freshly plastered, painted or damp walls as the plates may tarnish. (Plaster can take up to 6 months to dry out). A Gasket can be made from the packaging the product comes in, or a plastic bag can be cut to stop the plate touching the plaster. Unfortunately, if these Instructions are not followed, and the plate is damaged, it will void the product warranty.
..................................................
Product Instructions & Manuals
- 4G USB Socket Instructions PDF
- Wiring Accessories PDF
- Screwless Fitting PDF
..................................................
VARILIGHT Sockets have an industry-wide reputation for exceptional performance, long life and innovation at attractive prices.
..................................................
The Varilight Socket, like all our products, is designed to meet the latest European Safety Legislation.
..................................................
It is important to select the correct Sockets for your application, so please read the following information carefully, if need be look at PDF manuals, and if you are still unsure, then contact us.
..................................................
Appearance, Function and Applications
There are 4 optimised USB sockets sharing 4800mA on the plate.
..................................................
Smart Port technology makes it ideal for charging multiple devices, including iPads, iPhones, tablets, mobiles and cameras. The USB port detects the device to be charged and optimises its output accordingly to achieve the fastest possible charging speed.
..................................................
Limitations
This Socket is not waterproof.
..................................................
Cleaning
This product can be easily cleaned with a soft dry micro-fibre cloth. Never apply masking tape or other similar tape to the product. Avoid the use of any cleaning chemicals and always use a Gasket on freshly plastered, painted or damp walls as the plates may tarnish. (Plaster can take up to 6 months to dry out). A Gasket can be made from the packaging the product comes in, or a plastic bag can be cut to stop the plate touching the plaster. Unfortunately, if these Instructions are not followed, and the plate is damaged, it will void the product warranty.
..................................................
Product Instructions & Manuals
- 4G USB Socket Instructions PDF
- Wiring Accessories PDF
- Screwless Fitting PDF
| Plate Finish | Brushed Brass |
|---|---|
| Plate Range Finish | Screwless Brushed Brass |
| Sockets | 1 Gang Socket |
| Socket Insert Colour | Black |
Write Your Own Review
Product Features
✔Power more devices with the flexibility of four charging ports sharing 4800mA
✔Smart Port technology makes it ideal for charging multiple devices, including iPads, iPhones, tablets, mobiles and cameras
✔The USB port detects the device to be charged and optimises its output accordingly to achieve the fastest possible charging speed
✔Sleek, low-profile screwless faceplate
✔Fits in a 35mm Deep Wall Box
..................................................
Range: Screwless
Finish: Brushed Brass Effect
Product Category: USB Charging Port
Insert/Knob Colour: Black Insert
Barcode: 5021575051452
Dimensions: 86x86x35mm
Faceplate Depth: 4mm
Product Weight: 160g
Fixing Centres: 60.3mm
Recommended Back Box Depth: 35mm
Operating Voltage: 220/250V AC
Maximum Load Rating: 4800mA
Maximum Current Rating: 4800mA
Terminal (Live) Diameter: 4.5mm; Capacity: 4 x 2.5mm²
Terminal (Neutral) Diameter: 4.5mm; Capacity: 4 x 2.5mm²
Terminal (Earth) Diameter: 4.5mm; Capacity: 4 x 2.5mm²
..................................................
Intended Applications: Indoor Use Only. Domestic lighting circuits.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS 5733 & BS 1363-2
