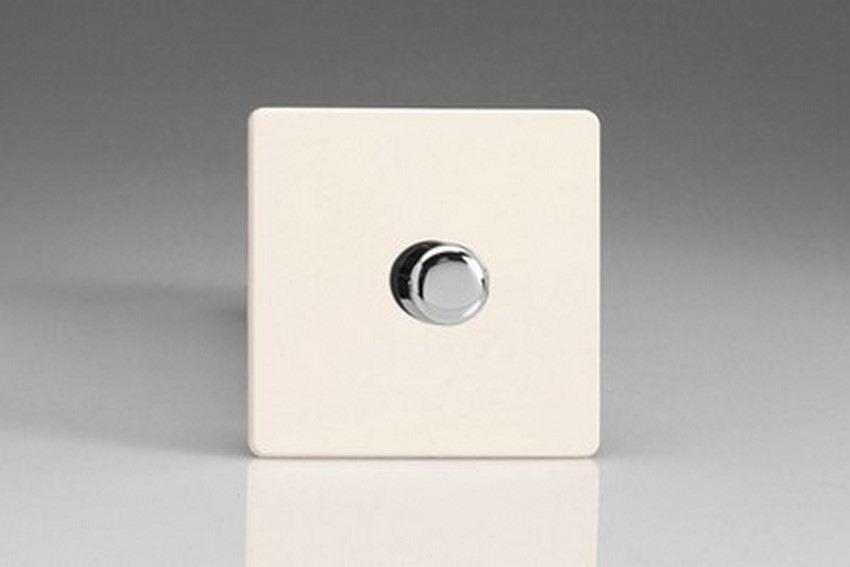

MJS Varilight V-Pro Smart Series 1 Gang Companion Controller Dimmer Module, For Both Supla WiFi and Non-WiFi Masters, use only with a Smart Master to create Multi-Way Dimming

Varilight MJS V-Pro Smart Series 1 Gang Companion Controller Dimmer (For Both Supla WiFi and Non-WiFi), Replacement Dimmer Module Kit, use only with a V-Pro Smart Master to create multi-way dimming. You are unable to use this Companion Controller dimmer as a stand-alone dimmer for 1 way circuits please buy a V-Pro Smart Master dimmer. (Included with the module is a nut and also wiring instructions).

For a selection of different colour Dimmer Knobs and extra components please look in our Additional Extras Category.
..................................................
One of the most common product requests we've had over the past decade has been a rotary controlled dimmer with the capability to dim from multiple positions. Until recently, the technology hasn't been available to do this but with the new simple to use V-Pro Smart Rotary dimmers, Varilight has now made it possible.
..................................................
The new range of V-Pro Smart dimmers uses an encoder in place of a potentiometer, allowing for infinite rotation of all the lighting controls on the circuit. This means that it doesn't matter where the control is on a different position, all that matters is what you're inputting when you want to adjust the lighting, making Multi-Way dimming possible while maintaining the look and feel of a rotary dimmer.
..................................................
VARILIGHT Dimmer Switches have an industry-wide reputation for exceptional performance, long life and innovation at attractive prices.
..................................................
The VARILIGHT V-Pro Smart Series Companion Controller Dimmer, like all our products, is designed to meet the latest European Safety Legislation.
..................................................
It is important to select the correct dimmer switch for your application, so please read the following information carefully, if need be look at PDF manuals, and if you are still unsure, then contact us.
..................................................

Appearance, Function and Applications

This dimmer is Micro-push on/off and rotary controlled, meaning to turn the dimmer on or off simply push the dimmer knob in slightly, and it will click back out; then to turn the brightness up or down, rotate the knob clockwise and anti-clockwise. This dimmer is different to conventional dimmers, as has been designed so the spindle can keep on turning with no definite stop.
..................................................
V-Pro Smart micro-Push on/off dimmers are suitable for both 1 way and 2 way circuits, and can be used for multi-way circuits too, this is the Companion Controller to create multi-way dimming.
..................................................
There are some extra functions of this dimmer that can be used alongside the regular push on/off and rotary dim controls. A sharp turn up will set the dimmers to maximum brightness, with a sharp turn down setting them to minimum brightness. Either of these can be performed from off. Turning the dimmer slowly in either direction from off will bring the dimmers on at minimum brightness, allowing you to ramp up from a very low level.
..................................................

2 Way Dimming

The V-Pro Smart Series Push on/off Dimmers can also be used in 2 way circuits (where one lighting circuit is controlled from two locations). In order to achieve 2 way dimming, they must be paired with a V-Pro Smart Series Companion Controller dimmer in the other location. 3 way or more, dimming can be achieved by adding an extra V-Pro Smart Slave dimmers in to the circuit. When using V-Pro Smart Series Dimmers in 2, 3 or multi way circuits, the lights can be dimmed from any locations that the Master and Companion Controller dimmers are situated in.
..................................................

Limitations

The V-Pro Smart Series Companion Controller dimmer will only operate with a Smart Master dimmer.
..................................................

..................................................

Product Instructions & Manuals


- V-Pro Smart Companion Controller Dimmer Instructions PDF
- V-Pro Dimmer Series Compatibility Guide PDF
- Compatibility Detailed PDF
- Compatibility Overview PDF
