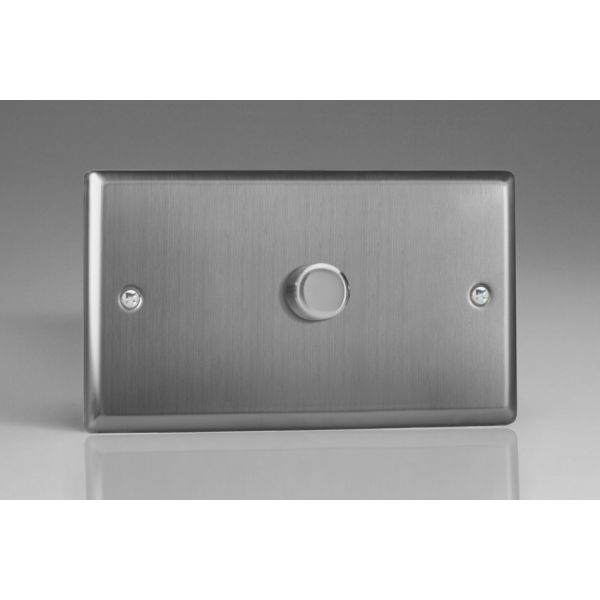

KTDP601 [WTD1 + MKP600] Varilight V-Com Series 1 Gang 40-600 Watt Leading Edge LED Dimmer Classic Brushed Steel

Varilight V-Com Series 1 Gang, 1 or 2 Way 40-600 Watt Push on/off Leading Edge LED Dimmer, on a Double Plate, Perfect for Multiple LEDs and LED Lighting Panels. For most good quality LEDs. You can load as many LEDs as required per circuit (Dimming Module) as long as the lamps do not exceed 600 watts in total. The dimmer module on this model have a minimum of 40 watts.
..................................................

VARILIGHT Dimmer Switches have an industry-wide reputation for exceptional performance, long life and innovation at attractive prices.
..................................................
The VARILIGHT V-Com Series Dimmer, like all our products, is designed to meet the latest European Safety Legislation.
..................................................
It is important to select the correct dimmer switch for your application, so please read the following information carefully, if need be look at PDF manuals, and if you are still unsure, then contact us.
..................................................

Appearance, Function and Applications

This dimmer is push on/off and rotary controlled, meaning to turn the dimmer on or off simply push the dimmer knob in and it will click back out; then to turn the brightness up or down, rotate the knob clockwise and anti-clockwise.
..................................................
Varilight's V-Com Series comprises of programmable intelligent dimmers. All V-Com dimmers offer smooth LED dimming technology to deliver the best possible dimming performance for a given load. V-Com dimmers are designed to control LED lighting loads requiring Leading Edge (Triac).
..................................................
There is a choice of driving modes to optimise the dimming performance of any given LED lighting load. V-Com dimmers feature Varilight's new DRIVE function to aid initial start-up for lamps that otherwise will not switch on at low brightness settings. This feature, alongside adjustable minimum and maximum brightness settings, enable V-Com dimmers to provide the full range of brightness that a given LED lamp is capable of delivering; Some LEDs are set to a default minimum brightness which may be too bright, the dimmer can be easily adjusted so the minimum brightness of the LED is to your own desired setting. Child Lock: Prevention of your dimmer accidently going into programming mode; Resetting The Dimmer: If you change your lights you can reset the dimmer to factory settings which defaults the minimum brightness. All of the V-Com functions can be changed after the dimmer is installed, please see instructions manual.
..................................................
The V-Com Series are equipped with some intelligent features: Soft-Start Technology, allows a longer life span of the bulbs or lamps used by increasing the brightness level softly, which also creates a welcoming effect; Self Re-setting Overload Protection, so is able to handle overload situations, for example, if the wattage of the bulbs/lamps are accidentally too high on a circuit. This is achieved by either, stepping down the dimmer's output to the lamps (if the watts are marginally overloaded), or the dimmer cuts out before there is any damage, (if the watts are grossly overloaded), until the load is reduced; Intelligent Thermal Protection which again stops damage to the dimmer, if it becomes too hot.
..................................................
With its patented intelligent LED dimming technology, V-Com is Varilight's best value range for LED dimming.
..................................................
The V-Com Series can be used in the home and also for Commercial Properties, Restaurants, Hotels, Bars, Pubs and Night Clubs, to name just a few applications.
..................................................
Ideal for dimming LED ceiling panels.
..................................................
Works especially well with the manufacturers, Megaman, Philips and Integral, and any of the LEDs that we sell.
..................................................

2 Way Dimming

The V-Com Series Push on/off Dimmers can be used in 2 way circuits (where one lighting circuit is controlled from two locations). In order to achieve 2 way switching, they must be paired with a standard 2 way switch in the other location
3 way switching can be achieved by adding an intermediate switch in to the circuit. When using V-Com Series Push on/off Dimmers in a 2 or 3 way circuit the lights can only be dimmed from the location that the dimmer is situated in, if total dimming is preferred from many switched locations, in a 2, 3 or more way circuit then choose the Varilight Smart or Multi-Point range of dimmers.
..................................................

Limitations

Varilight Dimmers can NOT be used for wire-wound or torroidal Transformers. For Fan applications choose V-Dim Solid State Series, please check with manufacturer of appliance to be dimmed.
..................................................

Cleaning

This product can be easily cleaned with a soft dry micro-fibre cloth. Never apply masking tape or other similar tape to the product. Avoid the use of any cleaning chemicals and always use a Gasket on freshly plastered, painted or damp walls as the plates may tarnish. (Plaster can take up to 6 months to dry out). A Gasket can be made from the packaging the product comes in, or a plastic bag can be cut to stop the plate touching the plaster. Unfortunately, if these Instructions are not followed, and the plate is damaged, it will void the product warranty.
..................................................
Product Instructions & Manuals


- V-Com Dimmer Instructions PDF
- V-Com Dimmer Series Compatibility Guide PDF
- Compatibility Detailed PDF
- Compatibility Overview PDF
