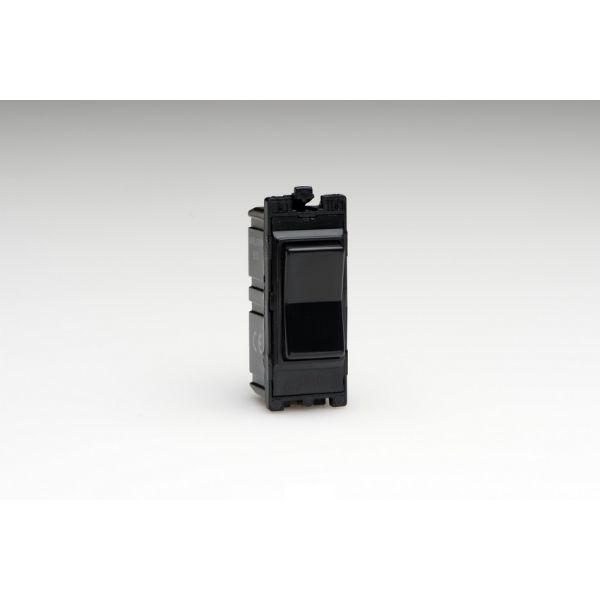

G102SRB Varilight 1 or 2 Way and Off 10 Amp PowerGrid Retractive Switch Black for Varilight PowerGrid plates (1 Grid Space)

Varilight 1 or 2 Way and Off 10 Amp Retractive Switch/Push To Make/Momentary PowerGrid Switch, for Varilight PowerGrid plates (1 Grid Space), for all lighting types.

..................................................
VARILIGHT Switches have an industry-wide reputation for exceptional performance, long life and innovation at attractive prices.
..................................................
The Varilight switch, like all our products, is designed to meet the latest European Safety Legislation.
..................................................
It is important to select the correct switch for your application, so please read the following information carefully, if need be look at PDF manuals, and if you are still unsure, then contact us.
..................................................

Appearance, Function and Applications

The rocker switch is rectangular with a central fulcrum, press the bottom of the rocker switch to turn on, and the top of the rocker switch to turn off, an audible click will occur when turning on/off the switch.
..................................................
Our standard rocker switches are suitable for controlling mains and low voltage lighting, halogen, incandescent GLS, LEDs and any other lighting that does not require dimming.
..................................................
They are also suitable for either 1 way, or 2 way circuits, i.e. where the same lights are controlled by 2 seperate switches.
..................................................

..................................................
Power Grid is a major new addition to the VARILIGHT Dimension range of electrical accessories.
..................................................
There are 200 Power Grid modules including new engraved modules, and both Screwless and Screwed Grid faceplates across the nine finishes enabling you to create countless combinations to produce tailor-made wiring accessories for specific projects.
..................................................
There are two types of plates: Dimension Screwed Power Grid plates employs mini fixing screws but will complement the existing range of Dimension Screwless sockets and Data Grid accessories to create one hugely expanded range assortment; Dimension Screwless Power Grid plates are in keeping with the rest of the screwless range, simply add the modules to the frame, and screw to wall box, then clip the cover plate on to frames.
..................................................
Please note: The data Grid inserts are not compatible with the Power Grid plates, Data Grid plates will have to be bought seperately.
..................................................
Screwless and Screwed Grid faceplates are available as 10AX 2 way and 20AX with 3 way, 2 way and 1 way configurations, single and double pole, standard switches, including some incorporating neons are complemented by intermediate switches, key switches, 2 way and on/off retractive switches, 13A fuse holders, 16A flex outlets and green, amber and red neon indicator modules, blanking modules and both 250W and 400W multi-purpose 2 way dimmer modules, as well as V-Pro, V-Com and Multi Point modules for dimming LEDs.
..................................................
Power Grid plates are available as 1, 2, 3, 4, 6, 8, 9 and 12 gang faceplates.
..................................................
As some of the dimmer modules sit deeply in the plate a 47mm wall box
..................................................

Limitations

This switch is not waterproof.
Cleaning

This product can be easily cleaned with a soft dry micro-fibre cloth. Never apply masking tape or other similar tape to the product. Avoid the use of any cleaning chemicals and always use a Gasket on freshly plastered, painted or damp walls as the plates may tarnish. (Plaster can take up to 6 months to dry out). A Gasket can be made from the packaging the product comes in, or a plastic bag can be cut to stop the plate touching the plaster. Unfortunately, if these Instructions are not followed, and the plate is damaged, it will void the product warranty.
..................................................

Product Instructions & Manuals


- Wiring Accessories PDF
- Power Grid PDF
