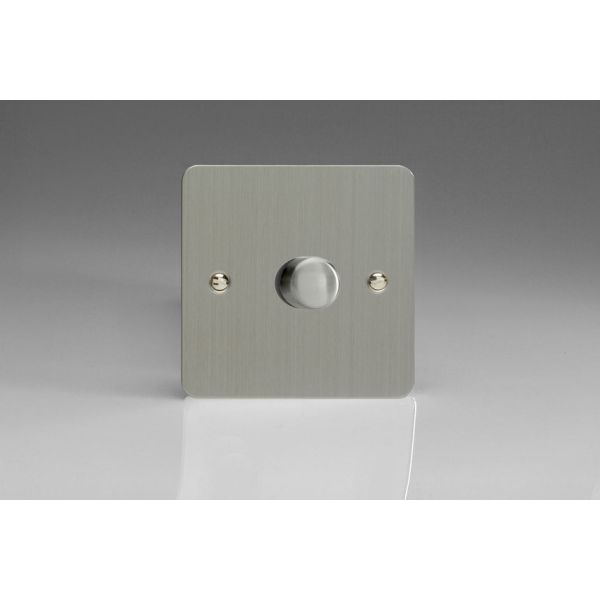

FFSP1M1 [WFS1 + MFP1M1] Varilight Special Series 1 Gang Dimmer for Multiple HF Dimmable Ballasts and LED Drivers 1-10V DC Input, 6 Amp Max Ultra Flat Brushed Stainless Steel

Varilight Special Series 1 Gang 6 Amp Dimmer, on a Single Plate, for either 1 or 2 Way circuits, designed for one or more High Frequency Dimmable Ballasts/LED drivers that Require a 0-10V (or 1-10V DC) Control Signal up to 20 mA.

..................................................
VARILIGHT Dimmer Switches have an industry-wide reputation for exceptional performance, long life and innovation at attractive prices.
..................................................
The VARILIGHT Special Series Dimmer, like all our products, is designed to meet the latest European Safety Legislation.
..................................................
It is important to select the correct dimmer switch for your application, so please read the following information carefully, if need be look at PDF manuals, and if you are still unsure, then contact us.
..................................................

Appearance, Function and Applications

This dimmer is push on/off and rotary controlled, meaning to turn the dimmer on or off simply push the dimmer knob in and it will click back out; then to turn the brightness up or down, rotate the knob clockwise and anti-clockwise.
..................................................
Varilight Special Series Dimming function is virtually the same as 0-10V. The difference is that VARILIGHT 1-10V dimmers are 1 or 2 way and can be controlled in a 2 way setup with a standard switch. They also have a push on/off action to turn off the mains (0V position) whereas 0-10V will just turn down to a '0' position.
..................................................
These types of dimmers require an extra two cores of cable as the dimming and switching functions are separate. The switching side is wired as a conventional switch to the mains and the dimming side is connected via the extra two core cable to the positive and negative terminals on the dimmable ballast/LED driver. Please see the wiring diagram on the instructions leaflet PDF for more information.
..................................................

Limitations

Do not use this dimmerswitch for any other purpose or connect this dimmer to the mains, as your guarantee will be invalid.
..................................................
Please see recommendation of maximum loads in the Compatibility Detailed PDF.
..................................................
WARNING: The switch in this product is rated at 6 Amps MAXIMUM. Check the in-rush current for LED bulbs or drivers before connecting. Fit inrush current limiters where necessary.
..................................................

Cleaning

This product can be easily cleaned with a soft dry micro-fibre cloth. Never apply masking tape or other similar tape to the product. Avoid the use of any cleaning chemicals and always use a Gasket on freshly plastered, painted or damp walls as the plates may tarnish. (Plaster can take up to 6 months to dry out). A Gasket can be made from the packaging the product comes in, or a plastic bag can be cut to stop the plate touching the plaster. Unfortunately, if these Instructions are not followed, and the plate is damaged, it will void the product warranty.
..................................................

Product Instructions & Manuals


- Ballast Dimmer PDF
- 1-10VDiagram PDF
- Compatibility Detailed PDF
- Compatibility Overview PDF
